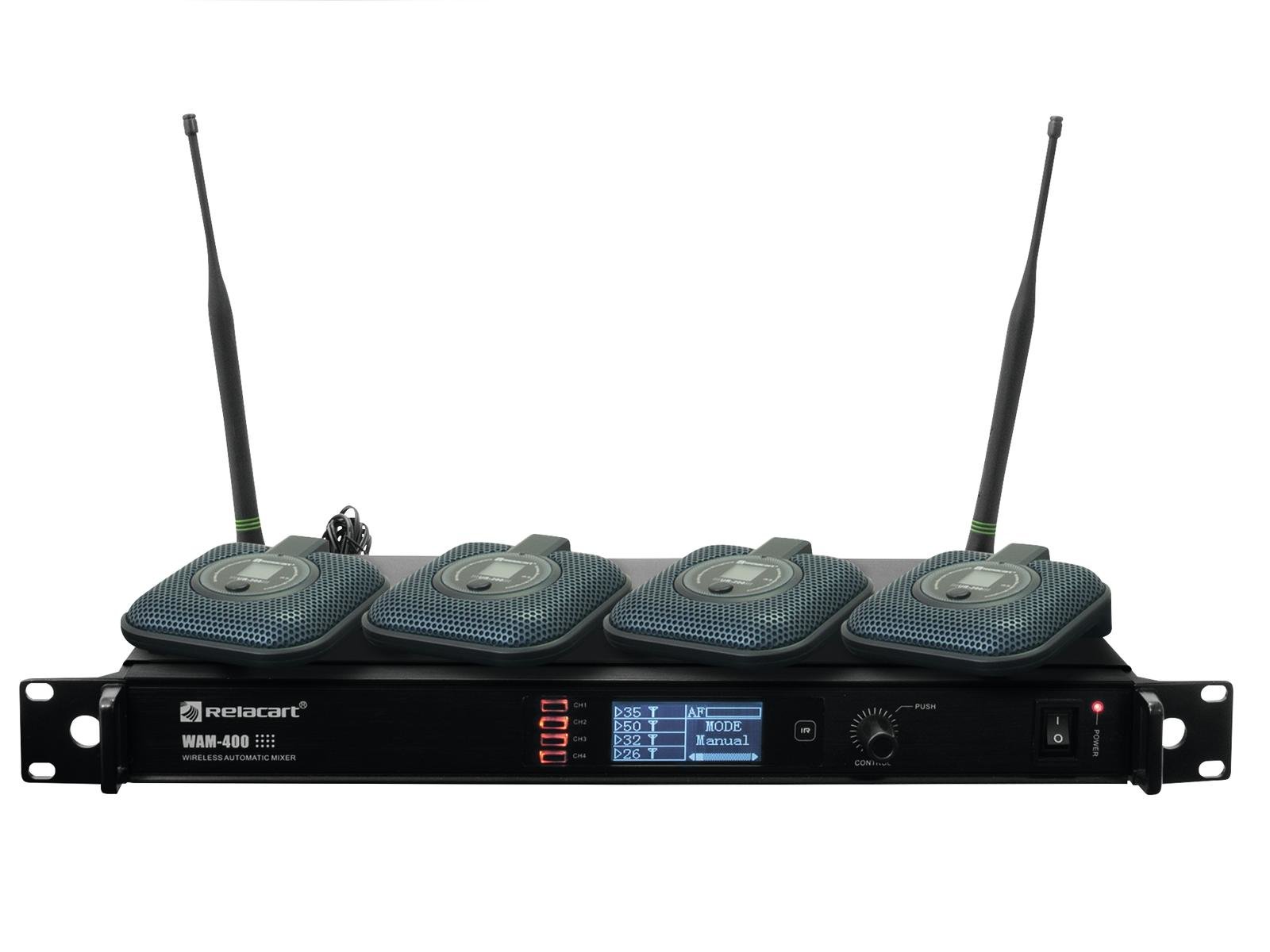

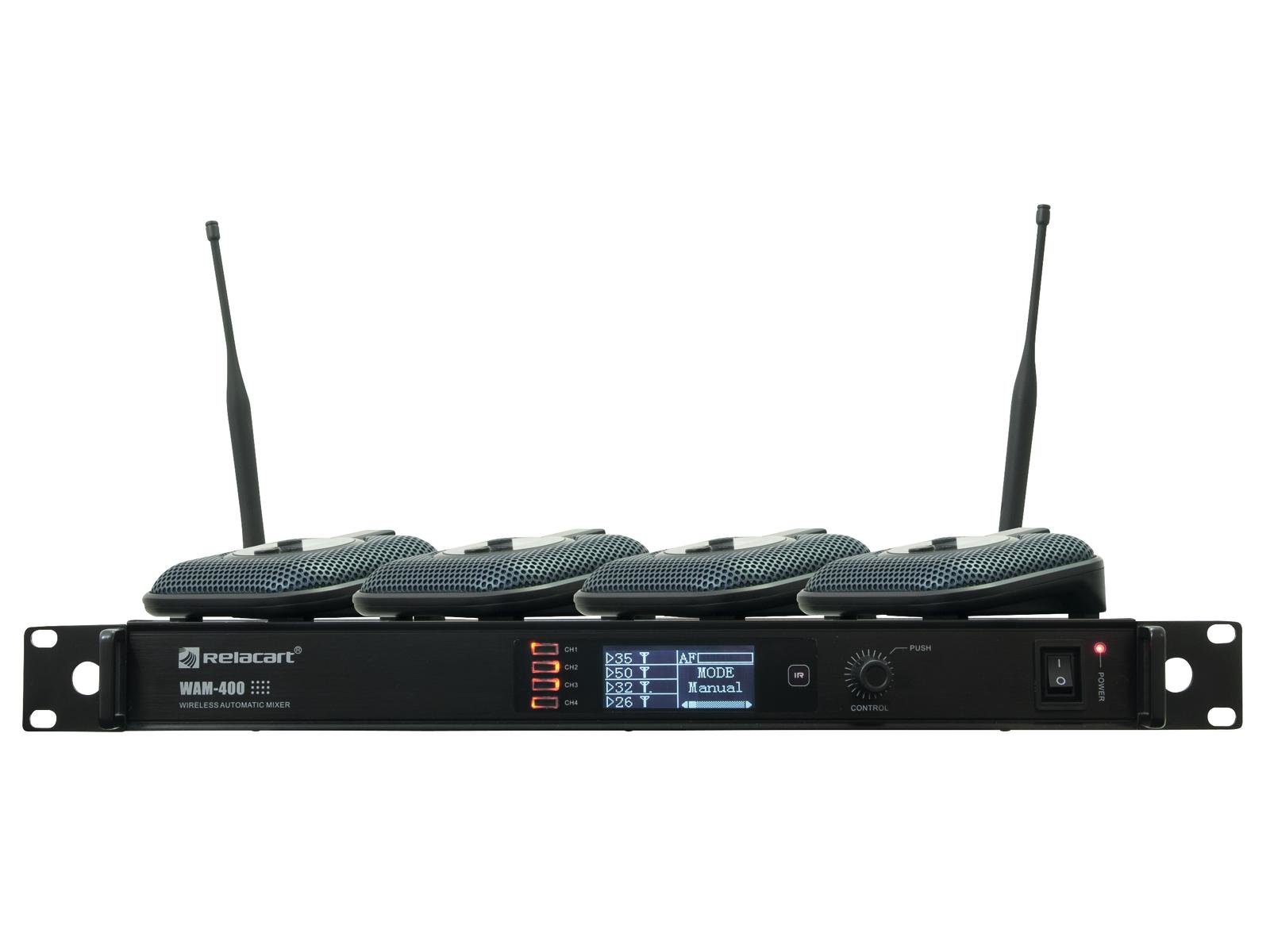

RELACART Set 1x WAM-400 and 4x UB-200 System
Tình trạng:
Còn hàng
Mã sản phẩm: Đang cập nhật...
Hãng sản xuất: Relacart
Loại: Wireless microphones
Liên hệ
TECHNICAL SPECIFICATIONS
Power consumption:
12 W
Polar pattern:
Cardioid
Frequency range:
65 - 16000 Hz
Frequency band:
UHF 863 - 865 MHz; UHF 823 - 832 MHz
Power connection:
Mains input Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
Microphone-Type:
Condenser
Range:
60 m with line of sight
Material:
Metal
Type:
Mixer
Housing design:
(19") 48.3 cm rack installation 1 U
Width:
48,3 cm
Height:
4,45 cm
Depth:
24,5 cm
Weight:
3,116 kg
Microphone
Battery:
8 x Mignon (AA) (not included)
System:
True Diversity, 4 channels
Receiving frequencies:
90
10 frequency banks with up to 10 preset frequencies each
Switching bandwidth:
11 MHz
Deviation:
±45 kHz
Frequency stability:
±10 ppm
T.H.D.:
<0.9 % at 1 kHz
S/N ratio:
>100 dB
Modulation method:
FM
Sensitivity:
5 dBµV (S/N >60 dB at 25 deviation)
Audio output:
XLR bal., 6.3 mm jack unbal., RCA L/R
Audio output level:
-10 dBV
Audio input:
RCA L/R
Audio input level:
-10 dBV
Communication:
2 x RS-232 (for external controllers)
Antenna inputs:
2 x BNC (supply 8 V/150 mA)
Power supply:
12 V DC, 1 A
via supplied...
TECHNICAL SPECIFICATIONS
| Power consumption: | 12 W |
| Polar pattern: | Cardioid |
| Frequency range: | 65 - 16000 Hz |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (m) (provided) |
| Microphone-Type: | Condenser |
| Range: | 60 m with line of sight |
| Material: | Metal |
| Type: | Mixer |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Width: | 48,3 cm |
| Height: | 4,45 cm |
| Depth: | 24,5 cm |
| Weight: | 3,116 kg |
| Microphone | |
| Battery: | 8 x Mignon (AA) (not included) |
| System: | True Diversity, 4 channels |
| Receiving frequencies: | 90 |
| 10 frequency banks with up to 10 preset frequencies each | |
| Switching bandwidth: | 11 MHz |
| Deviation: | ±45 kHz |
| Frequency stability: | ±10 ppm |
| T.H.D.: | <0.9 % at 1 kHz |
| S/N ratio: | >100 dB |
| Modulation method: | FM |
| Sensitivity: | 5 dBµV (S/N >60 dB at 25 deviation) |
| Audio output: | XLR bal., 6.3 mm jack unbal., RCA L/R |
| Audio output level: | -10 dBV |
| Audio input: | RCA L/R |
| Audio input level: | -10 dBV |
| Communication: | 2 x RS-232 (for external controllers) |
| Antenna inputs: | 2 x BNC (supply 8 V/150 mA) |
| Power supply: | 12 V DC, 1 A |
| via supplied power unit connected to 100-240 V AC, 50/60 Hz | |
| Dimensions (L x W x H): | 483 x 245 x 44 mm |
| Rack installation with 1 U | |
| Microphones: | |
| Type: | Electret boundary microphone |
| Directivity pattern: | Semi-cardioid |
| Carrier frequency: | UHF 823-832 and 829-832 MHz |
| Switching bandwidth: | 11 MHz |
| Deviation: | ±45 kHz |
| Modulation: | FM |
| Frequency stability: | ±0.0005 % |
| Dynamic range: | >90 dB, 1 kHz at max. SPL |
| RF power output: | 10 mW |
| Current consumption: | approx. 90 mA |
