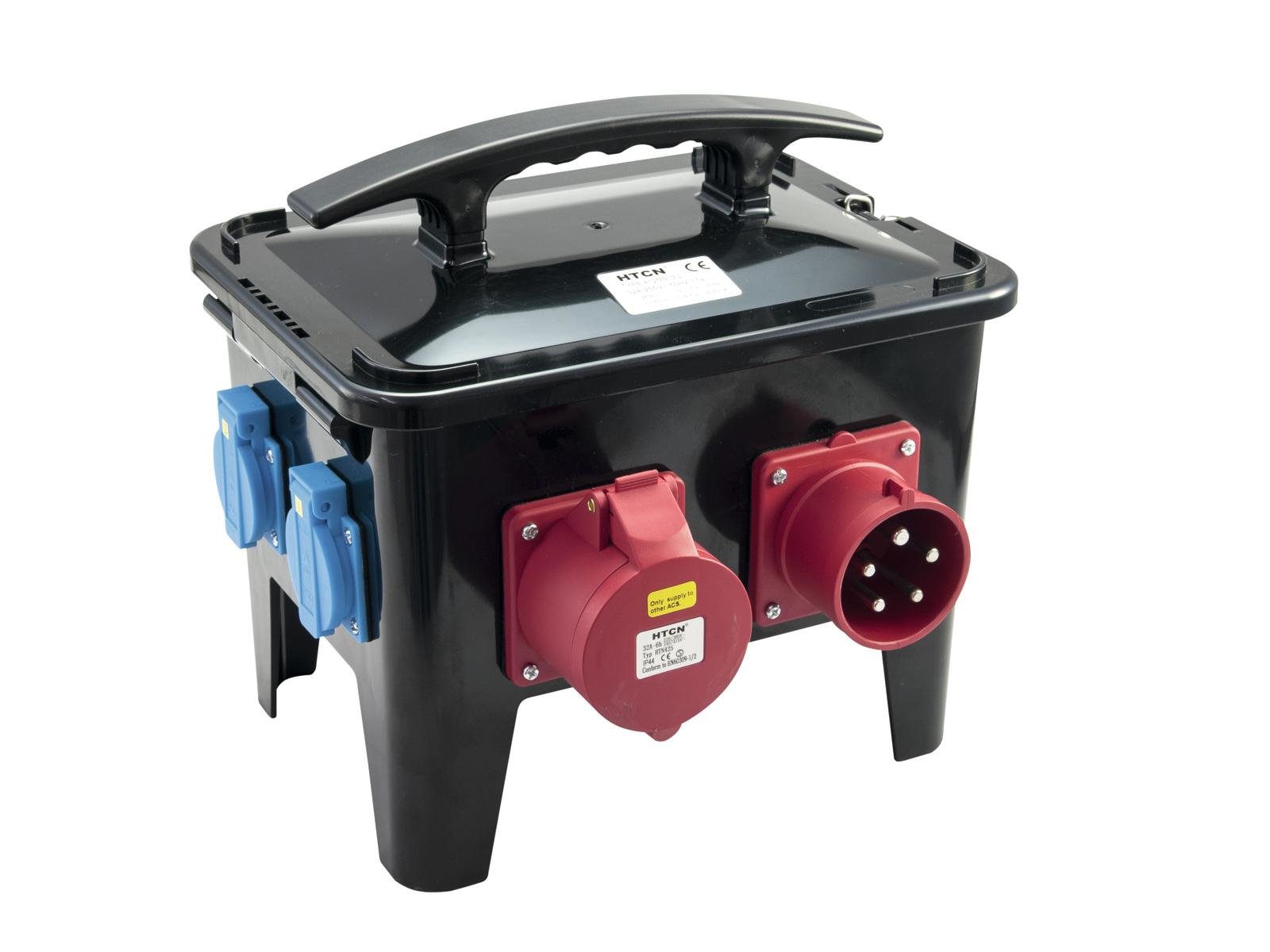

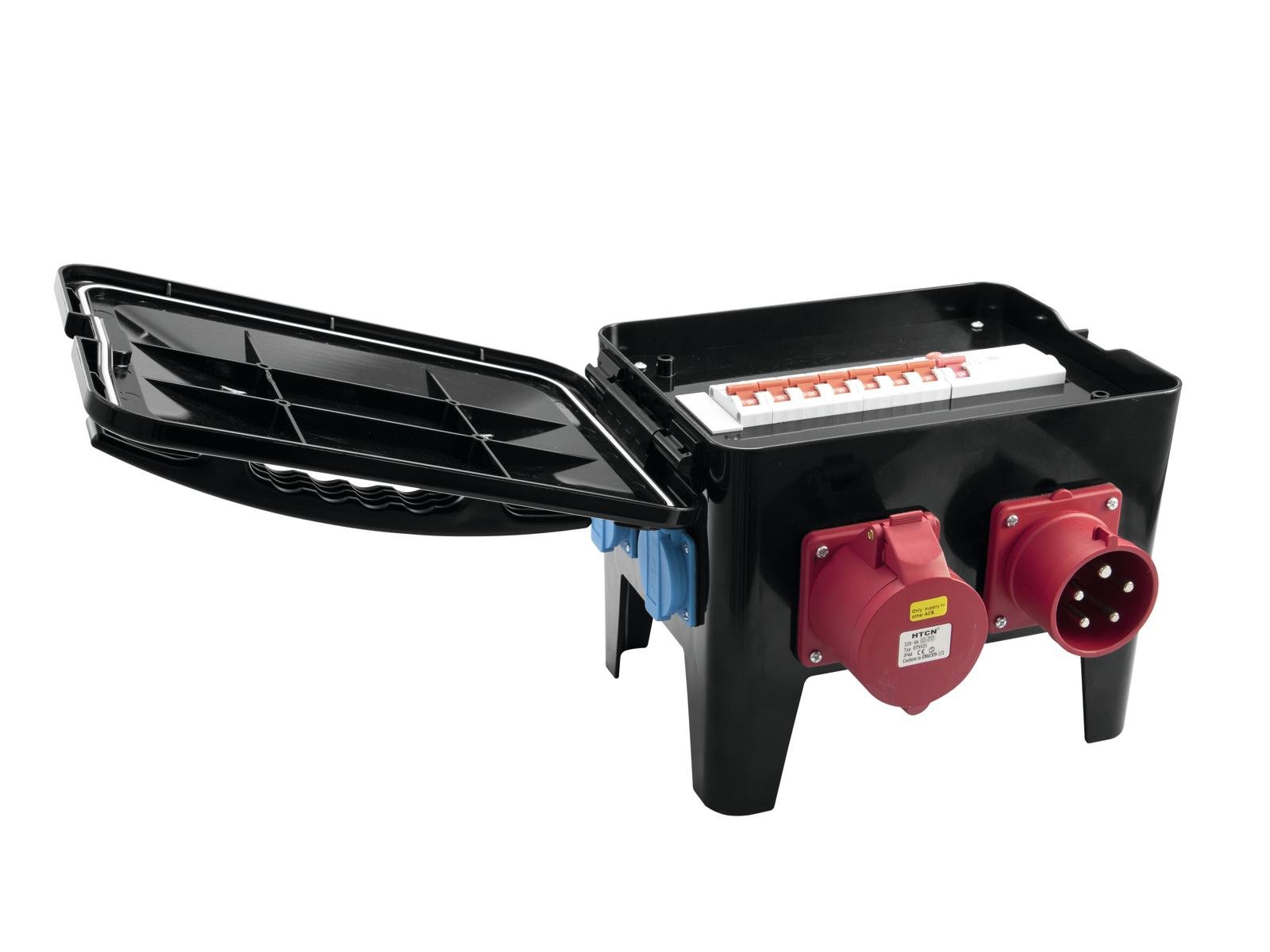

EUROLITE SBPO-3240 Power Distributor
Tình trạng:
Còn hàng
Mã sản phẩm: Đang cập nhật...
Hãng sản xuất: EUROLITE
Loại: Power distribution
Liên hệ
TECHNICAL SPECIFICATIONS
IP classification:
IP44
Power connection:
Mains input CEE 32A 5-pol (m) recessed mounting
Power output:
4 x Protective contact (F) hinged lid mounting version fused
2 x CEE 16A 5-pol (f) recessed mounting fused
1 x CEE 32A 5-pol (f) recessed mounting Bypass
Width:
31 cm
Height:
28 cm
Depth:
31 cm
Weight:
3,90 kg
Nominal input voltage:
380-480 V
Nominal input current:
32 A
Nominal output current:
16 A
Outputs:
1 x CEE socket bypass 400 V/32 A, 5-pin
2 x CEE socket 400 V/16 A, 5-pin
4 x safety socket 230 V/16 A
RDF:
0.7
TECHNICAL SPECIFICATIONS
| IP classification: | IP44 |
| Power connection: | Mains input CEE 32A 5-pol (m) recessed mounting |
| Power output: | 4 x Protective contact (F) hinged lid mounting version fused |
| 2 x CEE 16A 5-pol (f) recessed mounting fused | |
| 1 x CEE 32A 5-pol (f) recessed mounting Bypass | |
| Width: | 31 cm |
| Height: | 28 cm |
| Depth: | 31 cm |
| Weight: | 3,90 kg |
| Nominal input voltage: | 380-480 V |
| Nominal input current: | 32 A |
| Nominal output current: | 16 A |
| Outputs: | 1 x CEE socket bypass 400 V/32 A, 5-pin |
| 2 x CEE socket 400 V/16 A, 5-pin | |
| 4 x safety socket 230 V/16 A | |
| RDF: | 0.7 |
