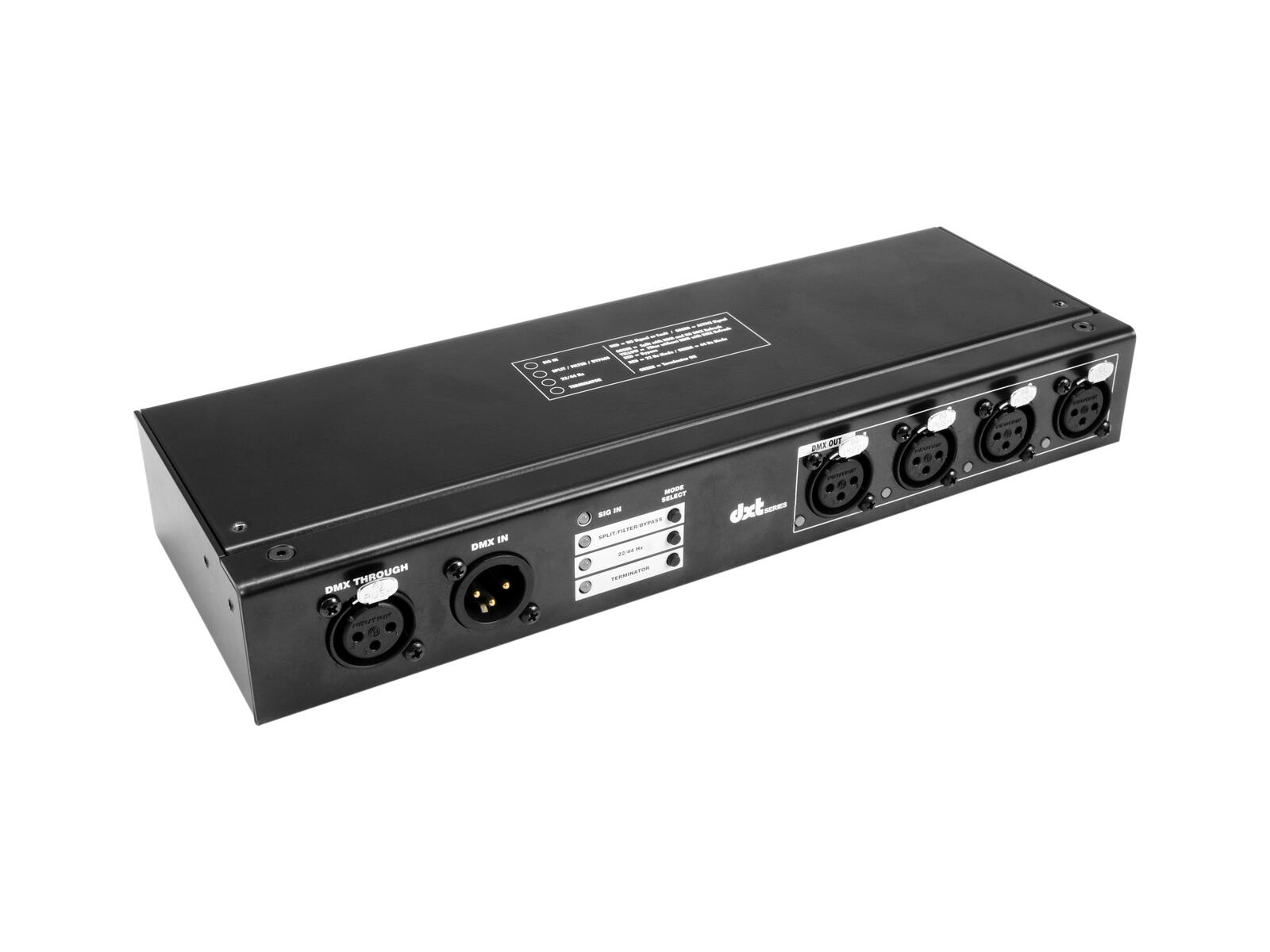

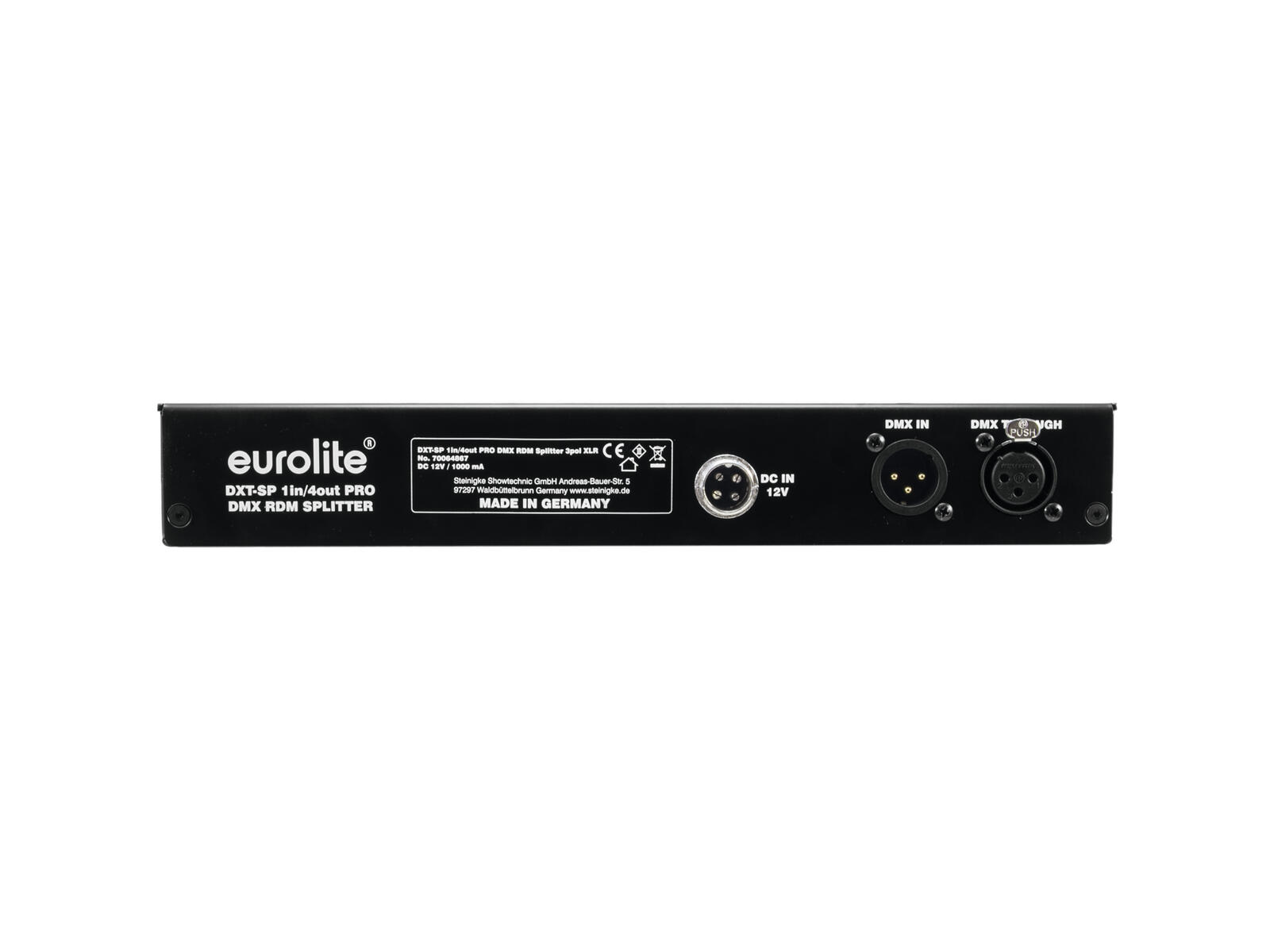

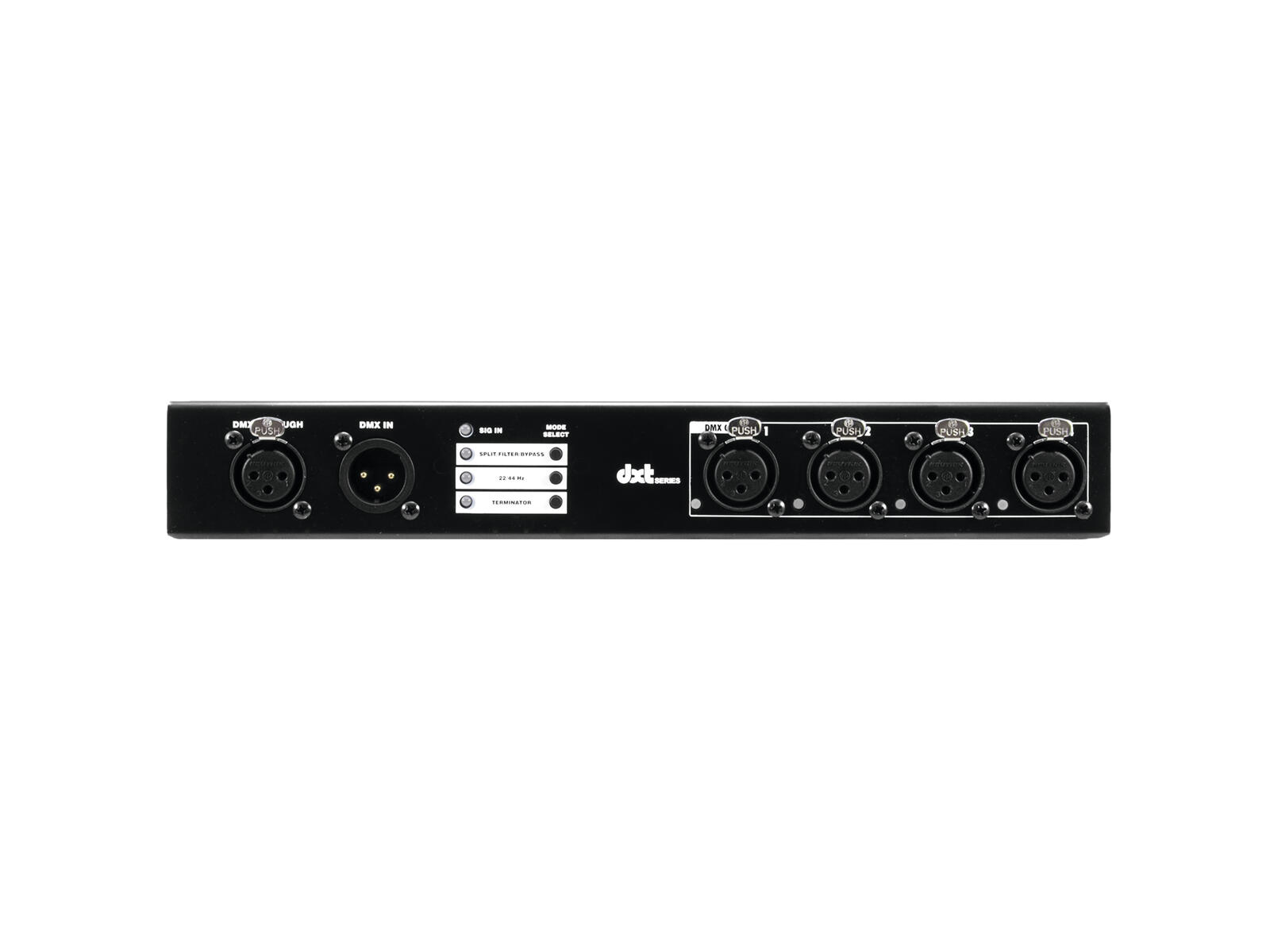

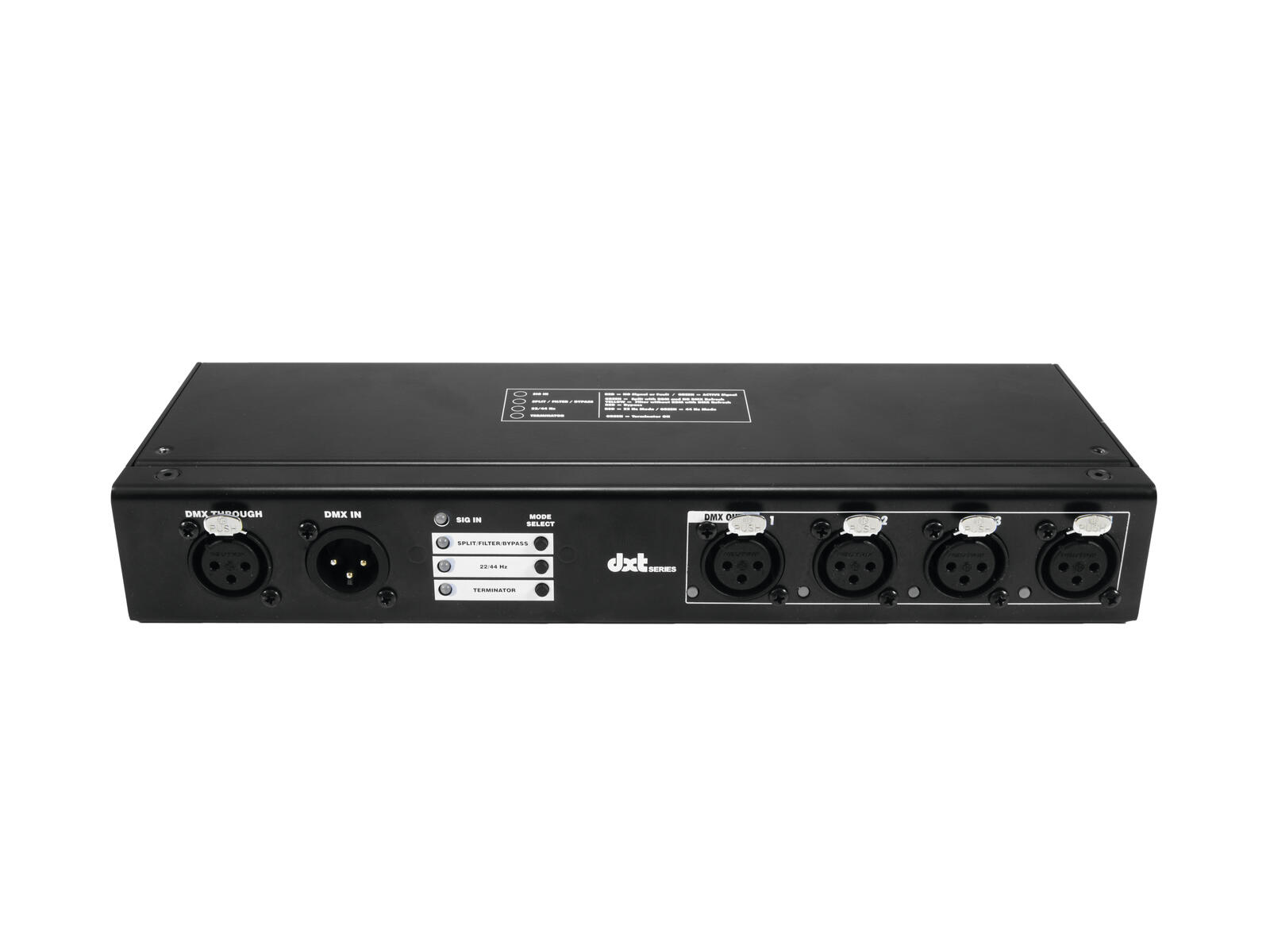

EUROLITE DXT-SP 1in/4out PRO DMX RDM Splitter
Tình trạng:
Tạm hết hàng
Mã sản phẩm: Đang cập nhật...
Hãng sản xuất: EUROLITE
Loại: Lighting
Liên hệ
FEATURES
RDM-capable DMX splitter, 1in/4out with signal boost
DMX splitter for splitting one DMX input signal to 4 DMX outputs
Input and feed-through output are duplicated on the front and rear panel and connected in parallel
Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
Bypass function to process signals from older devices similar to DMX signals
Output frequency adjustable: 22/44 Hz
Switchable termination resistor
Outputs galvanically isolated
Each DMX output can be connected to 32 DMX devices
Each DMX output with active signal processing
Control via RDM
DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM
DMX fail mode (hold; blackout; zero values)
Built...
FEATURES
RDM-capable DMX splitter, 1in/4out with signal boost
- DMX splitter for splitting one DMX input signal to 4 DMX outputs
- Input and feed-through output are duplicated on the front and rear panel and connected in parallel
- Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
- Bypass function to process signals from older devices similar to DMX signals
- Output frequency adjustable: 22/44 Hz
- Switchable termination resistor
- Outputs galvanically isolated
- Each DMX output can be connected to 32 DMX devices
- Each DMX output with active signal processing
- Control via RDM
- DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM - DMX fail mode (hold; blackout; zero values)
- Built with NEUTRIK connector
- Made in Germany
TECHNICAL SPECIFICATIONS
| Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1000 mA |
| Power consumption: | 3,6 W |
| Power connection: | Mains input via 4-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided) |
| DMX input: | 2 x 3-pin XLR (M) mounting version |
| DMX output: | 4 x 3-pin XLR (F) mounting version separate (galvanic) with active signal processing 2 x 3-pin XLR (F) mounting version Bypass |
| Control: | RDM |
| DMX features: | DMX feed-through for up to 32 further DMX devices RDM For bidirectional communication over the DMX line RDM switchable to prevent problems when using fixtures without RDM |
| DMX fail mode: | Hold; blackout; zero values |
| Use of brands: | Built with NEUTRIK connector |
| Dimensions: | Width: 27,5 cm Depth: 10 cm Height: 4,1 cm |
| Weight: | 1,21 kg |
